CYG-OFS HEAT-SHRINKABLE OPTICAL FIBER SPLICE CONNECTORS

概述产品描述性能指标产品规格相关产品

应用领域
CYG-OFS is specially designed to provide strength and protection for optical fiber splices, with adhesive liner and steel rod.

立即咨询

下载说明书

产品描述

材料：Outer layer: radiation cross-linked polyolefin Inner layer: special hot melt adhesive

收缩倍率：

特点：
◆ Recover the optical conductivity of the optical fiber
◆ Improve the mechanical strength of the splicing point
◆ Easy operation to reduce the damage risk of optical fiber
◆ Transparent appearance, easy to detect the qualification of connecting
◆ Good sealing performance to resist the temperature and humidity

性能指标

Items		Test Methods	Specification
Operation temperature		—	-55℃~105℃
Storage temperature		—	-55℃~85℃
Radial shrinkage		UL224	≥50%
Tensile strength		ASTM D2671	≥14MPa
Aging in circulating-air oven 136℃/168h	Tensile strength	ASTM D2671	≥10MPa
Aging in circulating-air oven 136℃/168h	Elongation at break	ASTM D2671	≥200%
Volume resistance		ASTM D876	≥1.0×10¹⁴Ω.cm
Dielectric strength		ASTM D2671	≥25KV/mm

产品规格

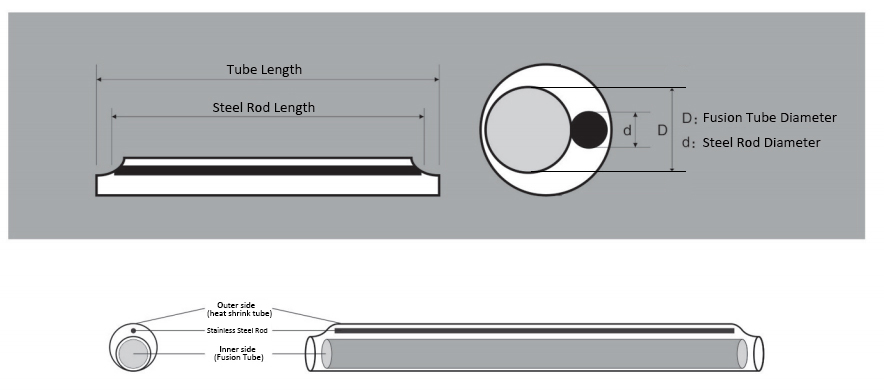

Size	Length (mm)	Fusion Tube		Steel Rod		Packing (pcs/pack)
Size	Length (mm)	Inside Diameter (mm)	Length (mm)	Outside Diameter (mm)	Length (mm)	Packing (pcs/pack)
Big Type
CYG-0FS-60B	60.0±1.0	1.40±0.05	60.0±1.0	1.50±0.05	55.0±1.0	100
CYG-0FS-45B	45.0±1.0	1.40±0.05	45.0±1.0	1.50±0.05	40.0±1.0	100
CYG-0FS-40B	40.0±1.0	1.40±0.05	40.0±1.0	1.50±0.05	36.0±1.0	100
CYG-0FS-23B	23.0±1.0	1.40±0.05	23.0±1.0	1.50±0.05	18.0±1.0	100
Medium Type
CYG-0FS-61M	61.0±1.0	1.30±0.05	61.0±1.0	1.20±0.05	55.0±1.0	100
CYG-0FS-60M	60.0±1.0	1.30±0.05	60.0±1.0	1.20±0.05	56.0±1.0	100
CYG-0FS-45M	45.0±1.0	1.30±0.05	45.0±1.0	1.20±0.05	40.0±1.0	100
CYG-0FS-40M	40.0±1.0	1.30±0.05	23.0±1.0	1.20±0.05	36.0±1.0	100
CYG-0FS-30M	30.0±1.0	1.30±0.05	23.0±1.0	1.20±0.05	26.0±1.0	100
CYG-0FS-25M	25.0±1.0	1.30±0.05	23.0±1.0	1.20±0.05	21.0±1.0	100
Small Type
CYG-0FS-60S	60.0±1.0	0.50±0.05	60.0±1.0	1.00±0.05	56.0±1.0	100
CYG-0FS-40S	40.0±1.0	0.50±0.05	40.0±1.0	1.00±0.05	36.0±1.0	100
CYG-0FS-60SA	60.0±1.0	1.30±0.05	60.0±1.0	1.00±0.05	56.0±1.0	100
CYG-0FS-40SA	40.0±1.0	1.30±0.05	40.0±1.0	1.00±0.05	36.0±1.0	100
Micro Type
CYG-0FS-40T	40.0±1.0	0.50±0.05	40.0±1.0	0.50±0.05	40.0±1.0	100
CYG-0FS-25T	25.0±0.5	0.50±0.05	25.0±0.5	0.50±0.05	25.0±0.5	100
CYG-0FS-18T	18.0±0.5	0.50±0.05	18.0±0.5	0.50±0.05	18.0±0.5	100
CYG-0FS-15T	15.0±0.5	0.50±0.05	15.0±0.5	0.50±0.05	15.0±0.5	100
CYG-0FS-10T	10.0±0.5	0.50±0.05	10.0±0.5	0.50±0.05	10.0±0.5	100

Other sizes are available upon special order.
